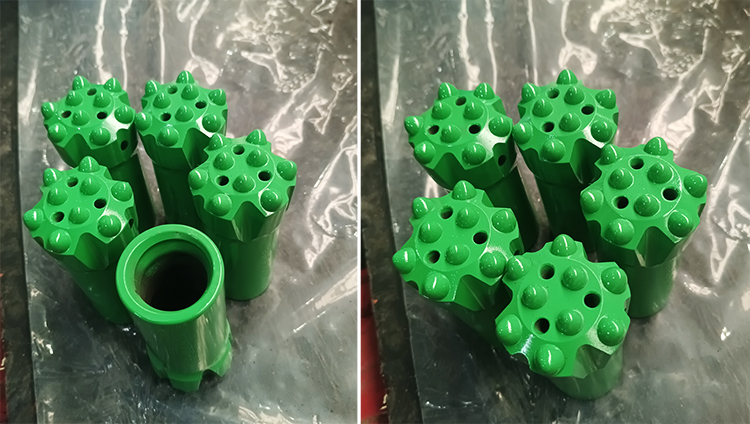

Factory Supply T38 Drop Center Thread Bit Underground Tunnel Mining Drifter Rig Cost Performance Drill Tool

Name: Factory Supply T38 Drop Center Thread Bit Underground Tunnel Mining Drifter Rig Cost Performance Drill Tool
Brand: MIROC
Price: 60 USD

Quality Factory Supply T38 Drop Center Thread Bit Underground Tunnel Mining Drifter Rig Cost Performance Drill Tool for sale

MOQ : 1

Delivery Time : 20-30

Feature : High wear resistant

Model Number : R25, R28, R32, R35, R38, T38, T45, T51, ST58, ST60

Customized Support : OEM, ODM

Payment Terms : L/C,D/A,D/P,T/T,Western Union

Color : Customer request

Connection : Extension rod

Price : ＄60

Advantage : High Performance

Supply Ability : 30000

Product name : T38 76mm Button bit

Brand Name : MIROC

Quality : High performance

Certification : ISO

Place of Origin : CHINA

Application : Granite marble sandstone quarry and mining

Type : Standard retrac thread button bit

Packaging Details : Wooden box

Contact Now

Overview

Our Thread Button Drill Bits are precision-engineered for high-performance rock drilling across a wide range of applications. Manufactured from premium alloy steel and fitted with top-grade tungsten carbide inserts, these bits deliver exceptional durability, energy efficiency, and penetration rates—even in the most demanding drilling environments. With customizable designs and comprehensive thread options, we provide tailored solutions for soft, medium, and hard rock formations.

Customization – OEM & ODM Services

We offer full customization to meet your specific project requirements. Our engineering team can design and manufacture thread button bits based on your samples or technical drawings, including:

Bit diameter
Number and layout of air/water holes
Carbide button shape and configuration
Face shape design

Whether you are drilling in soft formations or hard, abrasive rock, we can tailor the bit geometry and material selection to maximize performance and service life.

T38 button bit
	Bit Dia.	Buttons and Size (mm)		Flushing Hole		Weight
	mm	Front	Gauge	Front	Side	kg
1	64	3×10, 1×10	6×11	3	-	1.7
2	70	3×10, 1×10	6×12	3	-	1.8
3	76	3×11, 1×11	6×12	3	1	2.6
4	89	3×11, 2×11	6×13	3	1	3.3

Application Summary

Rock Type	Suitability
Soft Rock	✓ (customizable)
Medium Rock	✓
Hard Rock (Granite, Basalt, Iron Ore)	✓
Highly Abrasive Formations (Quartz Veins)	✓

Optimized Flushing System

Strategically positioned side and front flushing holes ensure superior air or water flow directly to the hole bottom. This design:

Quickly evacuates drill cuttings
Prevents bit balling (clogging)
Maintains high penetration rates in both dry and wet drilling conditions

This flushing efficiency is especially critical for deep blast holes in quarrying and open-pit mining operations.

Factory Supply T38 Drop Center Thread Bit Underground Tunnel Mining Drifter Rig Cost Performance Drill Tool

Why Choose Our Thread Button Drill Bits?

✅ Longer service life – 5–6× longer than steel-tooth bits
✅ Lower cost per meter – fewer bit changes, less downtime
✅ High energy transmission – minimal energy loss during drilling
✅ Custom-engineered – tailored to your rock type and drilling conditions
✅ Reliable performance – withstands extreme impact and abrasion

Contact Us

Ready to optimize your drilling operations? Contact our team today to discuss your requirements or request a customized solution for your project.
